Handover
Test Systems
Integrates precise attenuators, splitter/combiner units, and RF switch systems into a single compact solution. Replacing the racks of instruments traditionally needed to cover broad test scenarios.
Traditional approaches require multiple instruments, extensive racks, or separate devices. WaveNxt handover systems streamline these setups into versatile, space-efficient configurations — delivering flexibility and precision where it counts most.
Frequency
200 – 8000MHz
Attenuation
Up to 95dB
Step Size
0.25dB
Max Paths
512paths
Key Features
Built for mission-critical reliability
Extended Frequency Range
Operates across a broad spectrum from 200 MHz to 8 GHz, ensuring versatility for a wide array of testing applications.
24/7 Operation
Engineered for continuous use, supporting fully automated testing workflows to maximize efficiency and reliability in mission-critical environments.
Shielded and Precise
Complete shielding ensures highly accurate and interference-free measurements, ideal for precision testing in demanding RF environments.
Customizable Topologies
Tailored to customer specifications, supporting multiple network topologies for enhanced flexibility and optimized test setups.
512 Attenuation Paths
Capable of managing up to 512 unique signal paths, providing unparalleled control over complex testing scenarios.
High Dynamic Range
Offers up to 90 dB of attenuation with fine-grain control, adjustable in 0.25 dB increments, delivering exceptional precision for signal fading and attenuation simulations.
Tailored User Interface
Custom-designed software interfaces align with specific customer needs, providing an intuitive and efficient control experience for streamlined operations.
Architecture

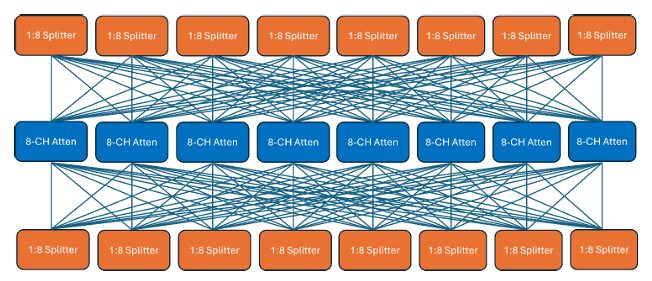

Functional Diagram
A highly integrated non-blocking architecture ensures seamless coverage emulation across multiple network nodes.
Standard Models
Choose your configuration
8×8
In
8
Out
8
Paths
64
16×8
In
16
Out
8
Paths
64
24×8
In
24
Out
8
Paths
192
32×8
In
32
Out
8
Paths
256
64×8
In
64
Out
8
Paths
512
64×16
In
64
Out
16
Paths
512
16×16
In
16
Out
16
Paths
256
Need a topology not listed? We build custom configurations to spec.
Talk to engineersAll models operate from 200 MHz to 8 GHz | 0.25 dB step size | Up to 90 dB attenuation | SMA female connectors
